model

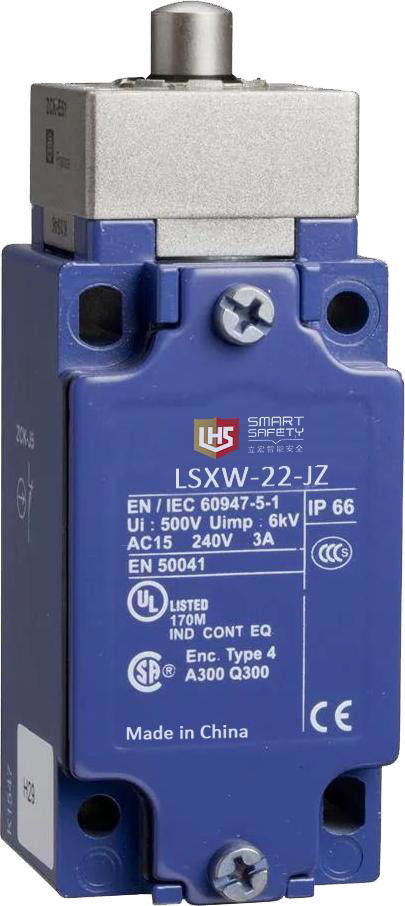

LSXW-22-JZ

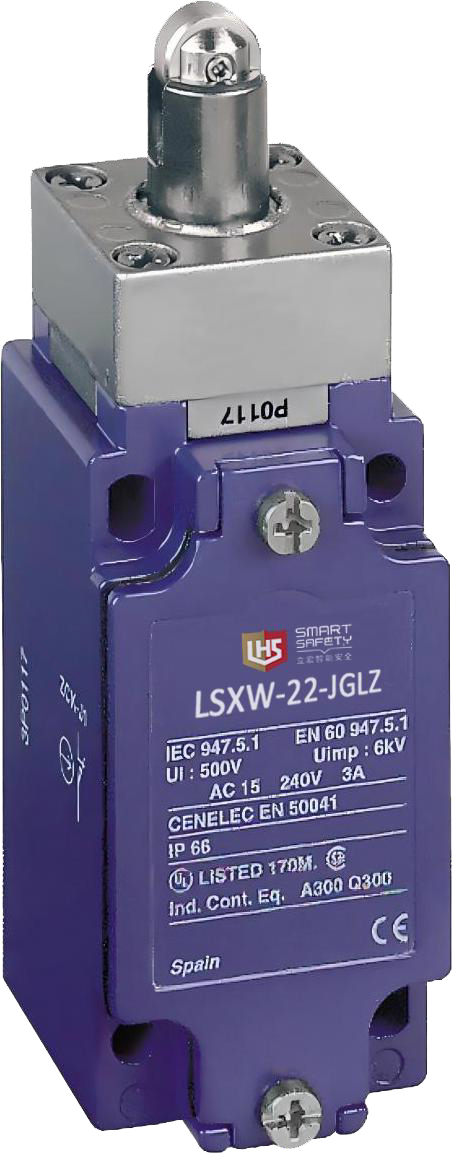

LSXW-22-JGLZ

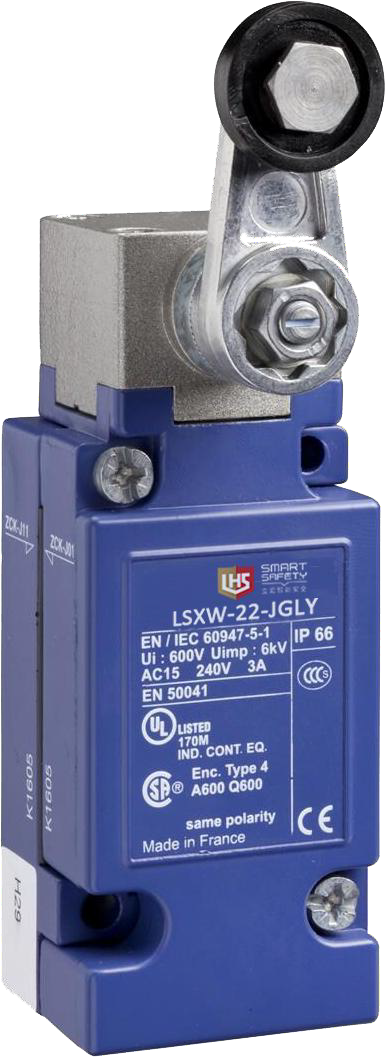

 LSXW-22-JGLY

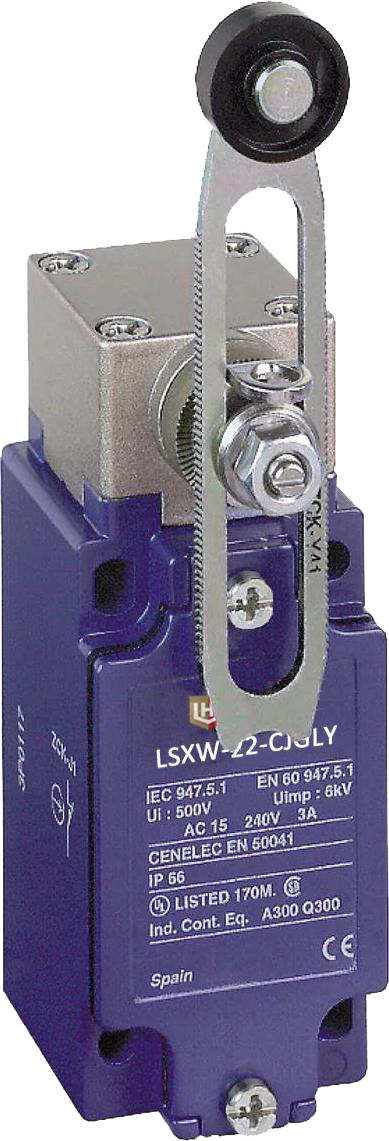

LSXW-22-CJGLY

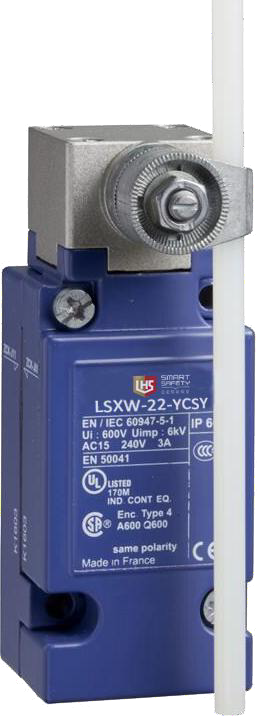

 LSXW-22-YCSY

Operating head

Direct-acting (body fixed)

Rocker type (fixed body)

(The switch is factory set to be triggered in both directions.)

Operation head type

Metal direct-acting type

Steel roller direct-acting type

Steel roller rocker

Adjustable length

Metal roller rocker

Circular metal rocker

Switch trigger

terminally

30o凸沿

Any moving part

Trigger type

Maximum trigger speed

0.5 m/s

1 m/s

1.5 m/s

mechanical life

(millions of operation cycles)

30

25

30

Minimum force or moment

touch off

20 N

16 N

0.25 N.m

50 N

40 N

0.50 N.m

-

-

Positive disconnection operation

package

IEC 60204-1，EN 60204-1

product certification

CE

Protection treatment

version

"TC" standard edition, "TH" special edition

ambient temperature

run

Temperature:-25...+ 70°C, special components (-40 C or+120 C) can be selected for extreme temperature.

store

Temperature:-40 ...+70 C.

Vibration resistance

Comply with IEC 60068-2-6 standard.

25 gn (10...500 Hz)

shock resistance

Comply with IEC 60068-2-27 standard.

50 gn (11 ms)

Electrical shock resistance

Class I conforms to IEC 61-140 and NF C 20-030 standards.

IP 66 conforms to iec 60529; IK 07 conforms to EN 50102-

the protection grades

repeatability

The direct-acting head performs 1 million operation cycles, and the trigger point accuracy is 0.01 mm

Cable entry hole or integrated connector

Depending on the model

M12 connector
