| ? Die-casting foot switch ? LHS series foot switches can prevent accidental misoperation ? Die-cast covers can protect the top and sides ? Contact: Multi-contact can be selected |
| Product details |
product line |   |  |  |

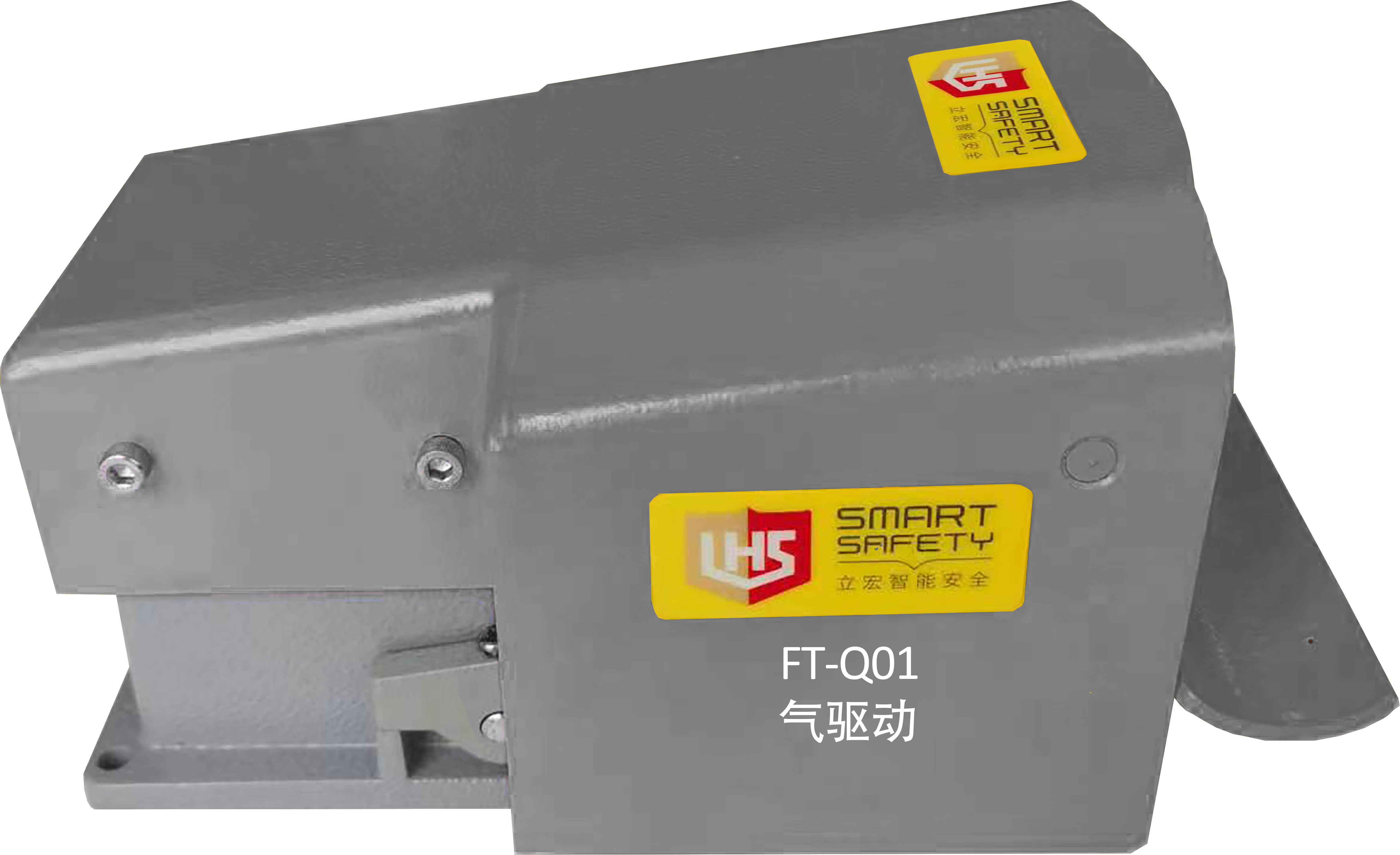

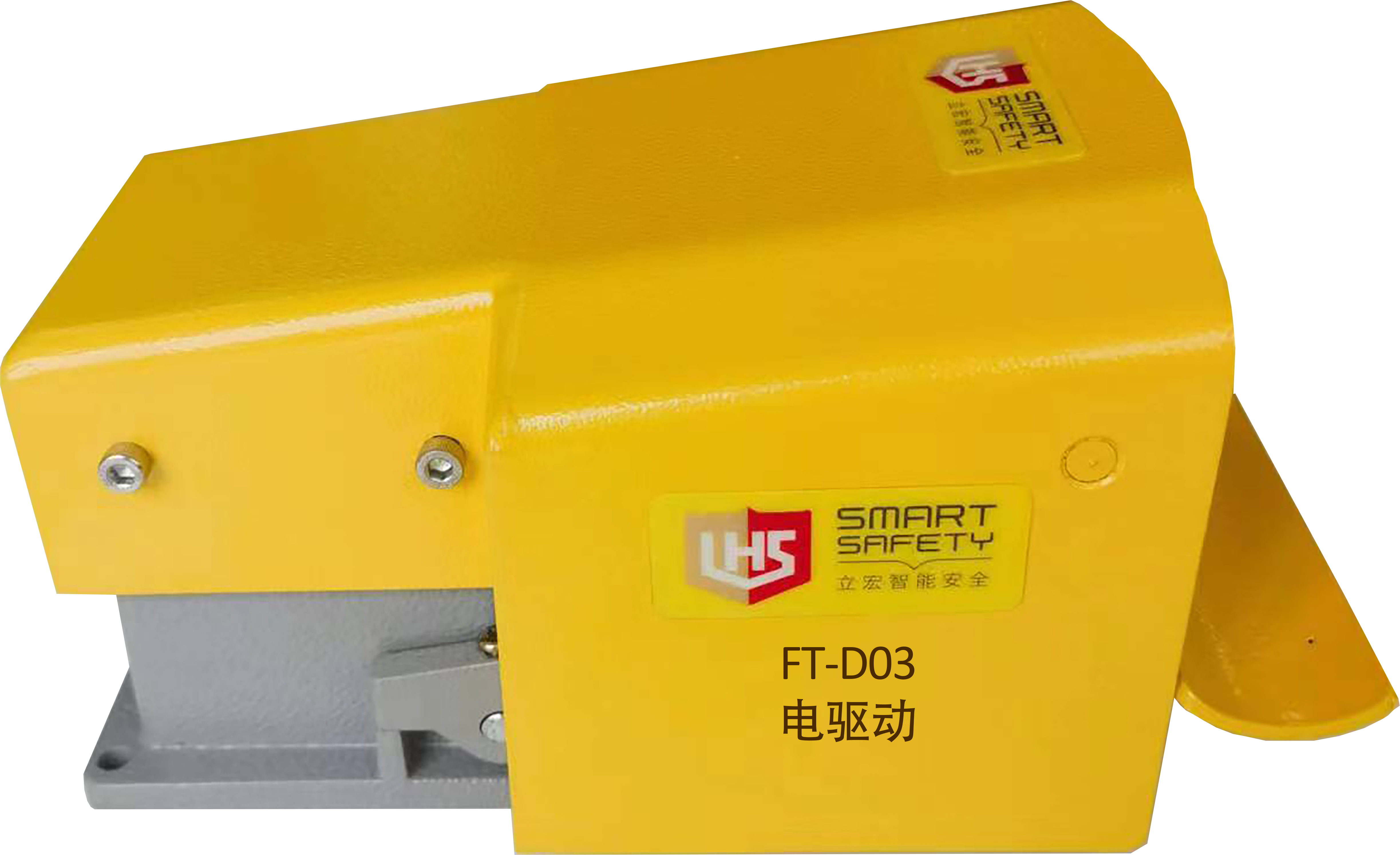

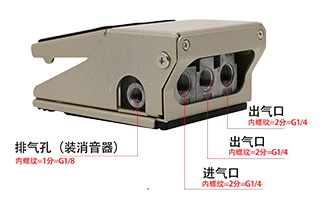

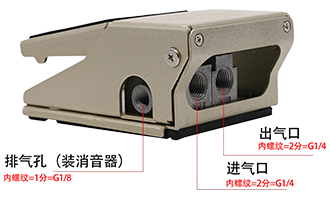

product model | FT-D02 | FT-D03 | FT-Q01 |
product category | electrically driven | electrically driven | Pneumatic drive |
Anti-treading function | YES | YES | YES |
contact | 1NC+1NO | 2NC+2NO | Two-position tee Two-position four-way |
material | 5mmHeavy steel | 5mmHeavy steel | die-cast |
measure | 230×153×130(mm) | 270×165×140(mm) | 230×153×130(mm) |
Pedaling function | Single tread plate | Single tread plate | Single tread plate |
mechanical life | >1,000,000次 | >1,000,000次 | >1,000,000次 |
rated voltage | AC250V/125V | AC250/125V | NA |
contact rating | 15A | 15A | NA |
resistance to impact | 30g/11ms | 30g/11ms | 10g/11ms |
environmental conditions | ambient temperature： -25 ℃ … +60 ℃ Storage and transportation temperature： -25 ℃ ... +85 ℃ | ||
Protection type | IP65 | ||
Overvoltage category | III | ||
Overvoltage category | 3 | ||
Rated impact resistance voltage Uimp | 6kV | ||
Rated isolation voltage Ui | 500V | ||
Thermal test current Ithe | 10A | ||
| security level/phase |
Standard: EN ISO 13849-1 B10D normally closed contact: 100,000 Service life: 20 years
|
1 pedal 1 normally open+1 normally closed/2 normally closed +2 normally open |
| functional check |
The safety function of the safety switch must be tested. Check and meet the following conditions in advance 1. Check whether the incoming cable and connection are complete. 2. Check whether the switch housing is damaged. 3. Check the switch function by operating the safety foot switch. | |
Note: Forced disconnection of normally closed contacts L left pedal R right pedal | |
 |  |

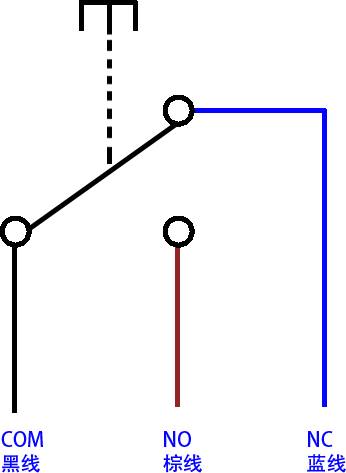

| Wiring instructions |
Palm line：------------- NO（normally open） line：------------- NC（normal close） black thread：------------- COM（the public side） Yellow-green bicolor line：------------- PE（ground wire） |  | Release status: black line (COM) and blue line (NC) On, black (COM) and brown line (NO) disconnect. Stepped state: black line (COM) and blue line (NC) Off, black (COM) and brown Line (NC) is on. |
